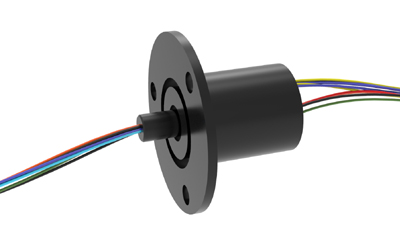

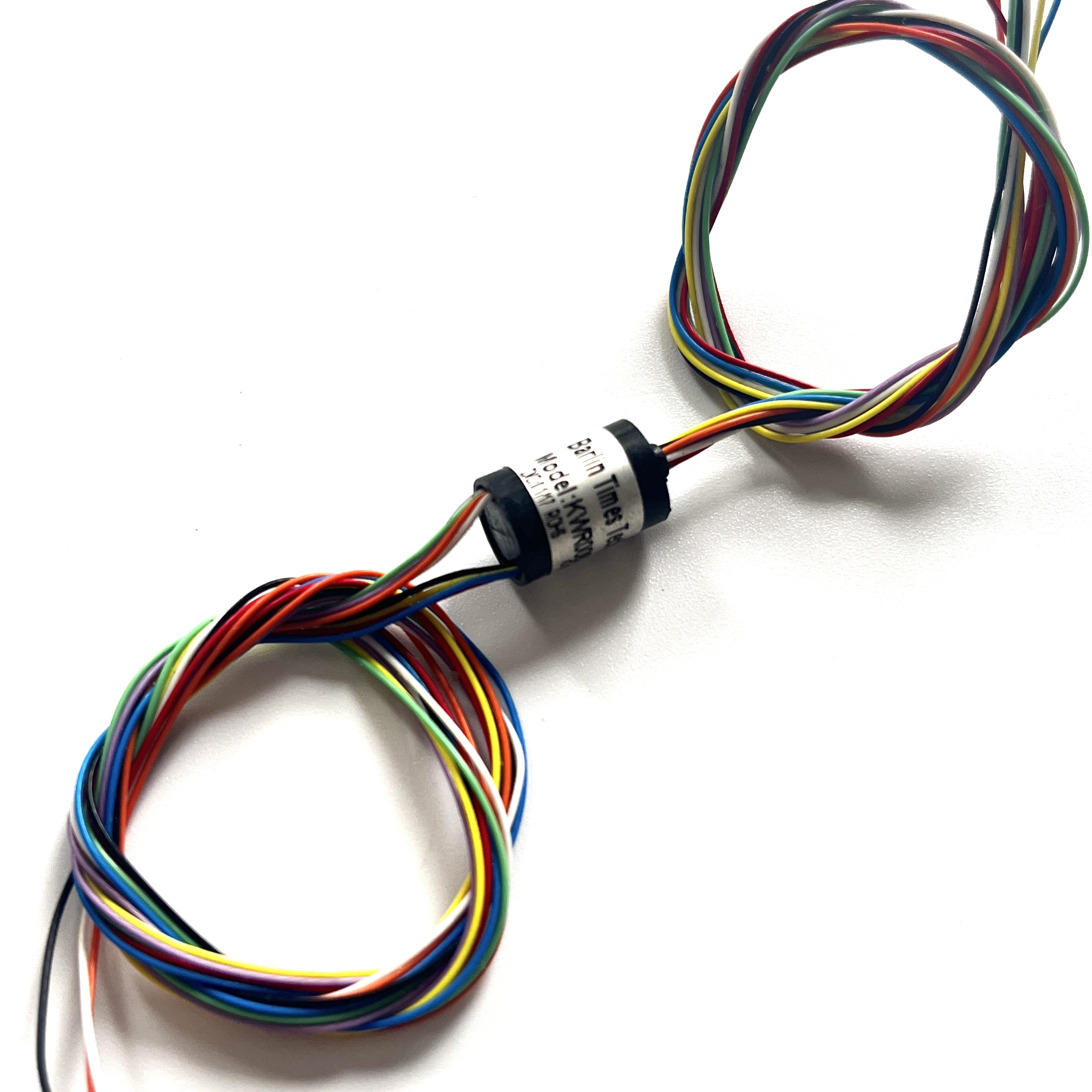

8mm Diameter Capsule Series Slip Ring

Capsule slip ring (8mm diameter capsule series) would like to do best to satisfy with any technical demand for different application customer, so we have spent several months time with the hardworking of our technical person to design supper small size capsule slip ring type for 8mm diameter. This kind of product has solved a key problem for those customer who require very small diameter to pass better signal and current with 360 degree rotations. The circuits could be optional from 1-8 at present, gold-gold materials contacts makes smooth operation and good wear-resistant performance. We are welcome your technology consulting. This type of slip ring is particularly used in UAV application, which received great welcome from the end user.

If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference..

Specifications:

Product Model THR008-04AM THR008-08AM
Circuits 1-4 1-8
Length 10mm 12mm
Pigtail Diameter 4mm 4mm
Work Speed 0-300RPM
Work Temperature -20℃-+60℃
Work Humidity 60%RH or higher
Voltage Rating 240VAC/DC
Current Rating 1A or higher
Insulation Resistance 1000MΩ@500VDC
Electrical Noise 1mΩ Min
Contact Materials Gold to gold
Lead Wire Size AWG32 Teflon® UL
Lead Wire Length Standard 250mm
Housing Materials Engineering plastic
Torque ≤0.09 gm ( for reference）
Protection IP54 or higher



Features:

  • Gold to gold contact materials guarantee long life time.
  • Low torque, low electrical noise and smooth rotation.
  • Small compact construction.
  • Compatible with data bus protocols.
  • Continuous transmission of signal and/or data under 360 degree unrestrained rotation.



Options:

  • Circuits.
  • Current & Voltage.
  • Work speed.
  • Housing materials and color.
  • Protection degree.
  • Lead wire length.
  • Connector type.
  • Signal and power transmission single or together.



Applications:

  • CCTV.
  • Rotary table, exhibition/display equipment.
  • Robotics.
  • Medical equipment.
  • Wind turbine generator.
  • Industry process equipment Specifications.
  • Unmanned Aerial Vehicle (UAV).
