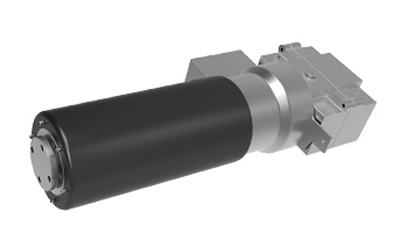

Wind Turbine Slip Ring


Slip ring enjoys wide applications, also including wind turbine generator industry. The wind turbine slip rings of Barlin Times imported material from foreign country and established advanced production equipment, which lead to slip ring enjoys excellent performance of low temperature resistance, wind resistance, corrosion resistance, high humidity & protection, shock proof, maintenance free etc in wind turbine generator. Barlin Times as for a professional wind turbine slip ring manufacturer, our wind turbine generator slip ring received a great welcome from many customers at home and abroad .Double gold contact design could guarantee longer working life time.

If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference.


Product Model THW-0215 THW-0315 THW-0330
Circuits 2 3 3
Work Speed 0-300RPM
Work Temperature -20℃-+60℃
Work Humidity 60%RH or higher
Voltage Rating 240-380VAC/DC
Current Rating 15-30A
Dielectric Strength 500VAC@50Hz between each circuit
Insulation Resistance 1000MΩ@500VDC
Electrical Noise ≤10mΩ
Contact Materials Precious metal
Lead Wire Size AWG14-16 Teflon® UL
Lead Wire Length Standard 250mm
Housing Materials Engineering plastic
Protection IP54 or higher



  • Easy installation and easy to assembly.
  • Anti-dust design & Anti-vibration design.
  • Anti-interference design for signal transmission.
  • Provide controller according to different environment.
  • Peak current could be up to 60A.
  • Multi points contact on each ring, compact structure.



  • Circuits & Current.
  • Optical channel available.
  • Housing materials.
  • Harting connetor or as request.
  • Transfer different data signal.
  • Provide controller according to different environment.
  • Small and medium size type are available.



  • Wind turbine generator
