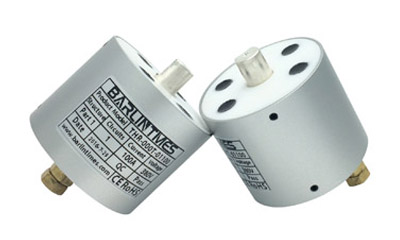

High Temperature Slip Ring

Barlin Times has strong technical research & development strength and experienced engineers, our high temperature slip ring could operate smoothly and reliably up to 500 degree or higher temperature environment. Through long term test period, its good quality and compact structure with 360 degree ration received great welcome from customers.

If you have specific customized requirement, please feel free to consult us so that our sales engineer could recommend the most suitable product to you for you reference.







Specifications:

 Product  Model Dimension(mm) Work Temperature Circuits&Current Voltage Rating Contact Materials Work Speed
THR-000T-0100 50*40(OD*L) -20℃~+150℃ 1 Circuit @ 100A 380VAC Precious Metal 0-100rpm
THR-000T-0210-0205 52*45(OD*L) -20℃~+250℃ 2 Circuits @ 10A
2 Circuits @ 5A		 380VAC Precious Metal 0-100rpm
THR-000T-0305-0201 31*78.5(OD*L) -40℃~+200℃ 3 Circuits @ 5A
2 Circuits @ 1A		 380VAC Precious Metal 0-100rpm
THR-000T-0280-02S 80*75(OD*L) -20℃~+200℃ 2 Circuits @ 80A
2 Circuits @ 2A		 380VAC Precious Metal 0-100rpm




Features:

  • Meet power, signal and data transmission with continuous 360 degree rotation.
  • Compact structure, high performance, low noise and low torque.
  • Long life time and maintenance free.
  • Reliable after sales service and excellent technical support.
  • Customization according to customer’s specific requirement.
  • Fiber brush technology and gold to gold contact materials could make sure reliable signal and power.



Options:

  • Work temperature.
  • Housing materials.
  • Work speed.
  • Installation method.
  • Position of wire outlet.
  • Lead wire length.
  • Protection degree.
  • Circuits , Current and voltage.
  • Power, signal and data combination.



Applications:

  • Heating equipment.
  • Packing machine.
  • Military instrument.
  • Manufacturing and processing control equipment.
  • Electrical test equipment.
