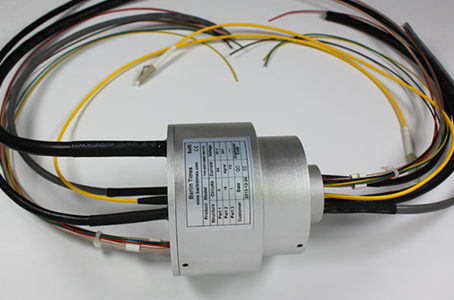

ELECTRICAL PART COMBINED WITH FIBER ROTARY JOINT:
| Product Type | Electrical part combined with fiber rotary joint |
|
Electrical Part
|
|
| Circuits/Current |
8 circuits @ 5A, 5 circuits @ RS422 signal, 2 circuits @ coaxial signal, 8 circuits @ Ethernet signal, 4 circuits @ data transmission |
| Voltage Rating | 0-380VDC/AC |
| Work Temperature | -40℃~+85℃ |
| Work Humidity | 60%RH or higher |
| Work Speed | Below 50rpm |
| Insulation Resistance | 1000MΩ@500VDC |
| Electrical Noise | Min 8mΩ |
| Lead Wire Size |
AWG22 teflon wire, 8 core shield wire, 5 core RS422 wire, 75Ωcoaxial cable, CAT5E cable |
| Lead Wire Length | 300mm |
| IP Degree | IP54 or higher |
| Contact Materials | Gold to gold |
| Housing Materials | Aluminum alloy |
|
Fiber Optical Part
|
|
| Fiber Channel | 1 |
| Work Speed | 0-2000rpm |
| Work Temperature | -40℃~+85℃ |
| Wavelength Range | 650-1650nm |
| Fiber Type | Single mode |
| Insertion Loss | ＜2dB |
| Return Loss | ＞40dB |
| Pulling Strength | 10N |
| Housing Materials | Stainless steel |
| Connector Type | LC(APC) |
| Vibration | MIL-STD-167-1A |
| Mechanical Shock | MIL-STD-167-810G |
| IP Protection | IP68 |
Product Picture:

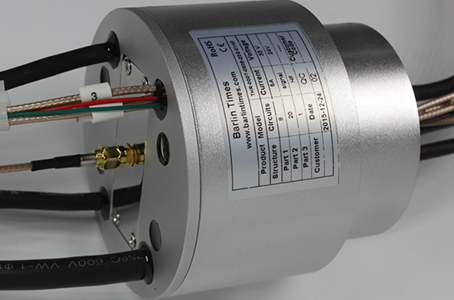

ELECTRICAL PART COMBINED WITH COAXIAL ROTARY JOINT:
| Product Type | Electrical part combined with coaxial rotary joint |
|
Electrical Part
|
|
| Circuits/Current |
8 circuits @ 5A, 5 circuits @ RS422 signal, 3 circuits @ coaxial signal, 8 circuits @ Ethernet signal, 4 circuits @ data transmission |
| Voltage Rating | 0-380VDC/AC |
| Work Temperature | -40℃~+85℃ |
| Work Humidity | 60%RH or higher |
| Work Speed | Below 50rpm |
| Insulation Resistance | 1000MΩ@500VDC |
| Electrical Noise | Min 8mΩ |
| Lead Wire Size |
AWG22 teflon wire, 8 core shield wire, 5 core RS422 wire, 75Ωcoaxial cable, CAT5E cable |
| Lead Wire Length | 300mm |
| IP Degree | IP54 or higher |
| Contact Materials | Gold to gold |
| Housing Materials | Aluminum alloy |
|
Fiber Optical Part
|
|
| Coaxial Channel | 1 |
| Work Speed | 0-500rpm |
| Work Temperature | -40℃~+85℃ |
| Work Humidity | 95%RH |
| Frequency Range | 0-18GHz |
| Frequency Impedance | 75Ω |
| Insertion Loss | 0.3dB |
| Insertion Loss WOW | 0.05dB |
| VSWR | 1.5dB |
| VSWR WOW | 0.05dB |
| Peak Power | 5KW max |
| Starting Torque | 0.5N max |
| Connector Type | BNC |
| Housing Materials | Metal housing |
| Contact Materials | Precious metal |
| Vibration | MIL-STD-167-1A |
| Mechanical Shock | MIL-STD-167-810G |
| IP Protection | IP54 |
Product Picture:
